Ridge Expansion Kit Progressive instruments for horizontal ridge expansion without bone removal. Discover more → OSSEOTOUCH · Magnetic Mallet System
Kit Elevate
Crestal sinus lift without rotary burs
Crestal Sinus Lift Kit · five concave-tipped osteotomes for the Magnetic Mallet
Five concave-tipped osteotomes. Millimeter-level stops from 1 to 13 mm. A protocol using MAGNETODYNAMICS designed to preserve bone, avoid routine irrigation, and bring reproducibility to a procedure that has long depended on operator feel.
Rotary bur-free·MAGNETODYNAMICS·FDA 510(k)·Crestal Sinus Floor Elevation·Posterior Maxilla·Reproducible·Rotary bur-free·MAGNETODYNAMICS·FDA 510(k)
01 The clinical problem
Every millimeter of bone
matters.
In the posterior maxilla, atrophy and sinus pneumatization leave only 3, 4, sometimes 2 mm of bone where 10–12 mm would be needed. Crestal sinus lift is a minimally invasive option in selected cases — but the traditional toolset works against you.
Burs, oscillating tips and ultrasonic devices remove bone where every millimeter counts. Depth and direction depend on operator feel. Irrigation floods the field. And the radiograph can still show a dome that is in fact fibrous tissue, not bone.
02 The solution
Bone preserved,
not removed.
The Magnetic Mallet delivers a 50-microsecond impulse with 5,000 g of acceleration and 1 mm of excursion. Bone is not cut: it is displaced, compacted and remodeled. The result is true osseodensification along the tunnel walls — improved bone quality and primary stability where it matters most.
With no rotary heat, no irrigation is required: the surgical field stays dry and fully visible throughout the procedure. Kit Elevate applies this principle with five concave-tipped inserts that collect autogenous bone particles and carry them apically as regenerative material.
02 Six problems solved
Where conventional
instrumentation falls short.
Bone preservation
Concave-tipped inserts that compact and reposition bone instead of removing it.
Millimeter-level control
Screen-printed stops from 1 to 13 mm, threaded onto a collar. You always know exactly where you are.
Membrane protected
Physical stops + tenting effect + collagen interposition in extreme cases.
Full surgical-field visibility
No irrigation needed: optimal visibility throughout the procedure. The clot is not washed away.
Controlled direction & depth
Millimetric physical stops guide depth. The insert follows the tunnel axis, reducing deviation.
Real bone, not fibrous
Pre-operative evaluation protocol ensures graft contact with the sinus walls.
Want to know more
about Kit Elevate?
Talk to one of our specialists to learn more about the kit, check compatibility with your clinical workflow, or request a demo.
We are in Italy. We reply within one business day, usually before 12pm ET.

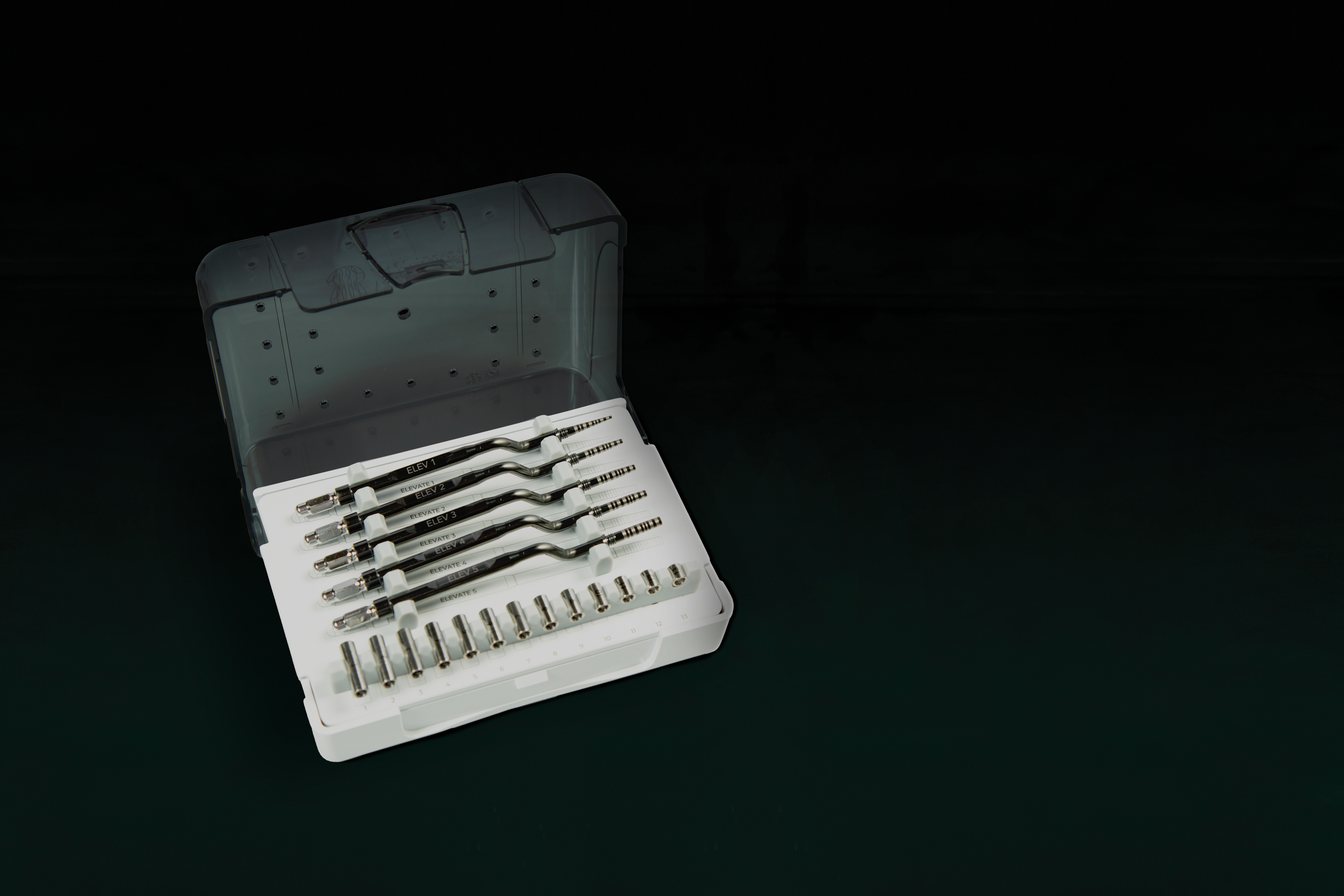

03 The Surgical Kit · Components in detail
Five concave-tipped osteotomes,
one reproducible protocol.
Sinus lift and implant site preparation in a single kit. Inserts of increasing diameter with concave tip that collects, compacts and repositions bone.
| Insert | Tip Ø | Base Ø | Function |
|---|---|---|---|
| Elevate 1 | 1.0 mm | 2.0 mm | Rotary bur-free tunnel start |
| Elevate 2 | 1.6 mm | 2.6 mm | Progressive widening |
| Elevate 3 | 2.0 mm | 3.0 mm | Tunnel to target diameter |
| Elevate 4 | 2.3 mm | 3.0 mm | Fracture for 3.7–3.8 mm implants |
| Elevate 5 | 3.0 mm | 3.4 mm | Fracture for 4.3 mm implants |
Concave tip with millimetric bands
Collects autogenous bone particles and carries them apically as regenerative material. Screen-printed bands give visual depth control.
MacroStop · depth limiters
Numbered stops from 1 to 13 mm thread onto a collar — the "impassable ceiling" that protects the Schneiderian membrane.
Millimeter-level stops from 1 to 13 mm, threaded onto a collar, screen-printed and always visible during the procedure.
U.S. availability
Buy online
OSSEOTOUCH LLC has served U.S. clinicians for over a decade. Kit Elevate ships directly with fast nationwide delivery and dedicated clinical support.
04 How to use · Clinical protocols
Step by step on screen,
case by case in practice.
Watch the complete procedure: from CBCT evaluation to controlled fracture, from biomaterial placement to implant positioning. Then choose the protocol that fits the residual bone you have.
Three protocols, one kit
Mini sinus lift
Less than five minutes of preparation.
Single-session protocol
CBCT, progressive stops, controlled fracture, biomaterial, implant.
Two predictable surgeries
First stage: lift and graft. Second stage (3–4 months): implant.
Available now Order Kit Elevate directly through OSSEOTOUCH LLC — fast nationwide delivery, dedicated clinical support.
Buy online 05 Biological evidence
Rotary bur-free preparation,
biologically measurable.
Rotary bur-free preparation preserves the integrity of the bone matrix: osteocytes remain viable, periosteal vascularization is not compromised, and the tissue responds with measurable changes in osteogenic growth factor expression. Animal pilot data indicate faster bone regeneration of higher quality compared with preparation by rotary instruments; human clinical confirmation is still ongoing for some endpoints.
BMP-4 ↑ Significantly increased
(minipig pilot study)
(minipig pilot study)
+70% Torque rise reported
in the first 15 minutes
in the first 15 minutes
95% 5-year success rate
(Heliyon, 2021)
(Heliyon, 2021)
↓ Fibrous Less fibrous tissue
vs rotary-prepared sites
vs rotary-prepared sites
Selected peer-reviewed evidence
Clinical & Radiographic Int J Oral Maxillofac Implants 2021
Clinical and Radiographic Evaluation of Modified Transalveolar Two-Step Osteotome-Mediated Localized Maxillary Sinus Elevation
5-year follow-up · 95% success Heliyon 2021
Flapless Localised Management of Sinus Floor (LMSF) for Trans-Crestal Sinus Floor Augmentation and Simultaneous Implant Placement
Pilot animal study Materials 2021
Biomolecular, Histological, Clinical, and Radiological Analyses of Dental Implant Bone Sites Prepared Using Magnetic Mallet Technology
06 See it at work
Video animation, clinical case,
and live webinar.
Three perspectives on Kit Elevate — from the geometry of the inserts, to a documented clinical case, to a full webinar discussion with the surgeons who perform the procedure.
07 Frequently asked questions
Questions clinicians
often ask.
What is Kit Elevate and what problem does it solve?
Kit Elevate is a system of five concave-tipped inserts designed for crestal sinus elevation with the Magnetic Mallet. It addresses a fundamental limitation of rotary burs: they remove the very bone clinicians aim to preserve. Kit Elevate compacts and repositions bone instead, providing millimeter-level control from 1 to 13 mm.
How does Kit Elevate help avoid Schneiderian membrane perforation?
It uses three layers of protection: depth stops that physically limit penetration to the selected working depth; a controlled fracture with Elevate 5, which creates a protective tenting effect; and, in more extreme cases, the 2STEPS protocol with interposed collagen.
When should I choose a crestal approach instead of a lateral approach?
Measure the sinus width at 10 mm on the CBCT scan. In a narrow sinus (<12 mm), the crestal approach with Kit Elevate is preferred because the graft material remains in contact with the sinus walls, supporting vascularization. In a wide sinus (>12 mm), a lateral approach is typically indicated.
How much residual bone height is needed?
Kit Elevate is used with 2 to 7 mm of residual bone height. With 5–7 mm, a simple mini sinus lift is generally sufficient. With 3–5 mm, the complete protocol can often be performed in a single session. With 2–3 mm, the 2STEPS protocol is recommended. Above 7–8 mm, sinus augmentation is usually not needed.
Is immediate loading possible?
Yes, when primary stability and the clinical conditions allow it. After placement, stability can increase spontaneously, especially during the first 15 minutes, as compressed cortical bone tends to return toward its original shape. This can support immediate loading even in low-density bone.
Is vibration or impact transmitted during the procedure?
The 50-microsecond impulse is below the threshold typically perceived as vibration. Clinical reports consistently describe little to no perceived shock. There is no continuous rotary vibration, no heat generation, no rotary handpiece noise, and no irrigation required. The post-operative course is typically reported as smoother, with less swelling and faster healing.
Is Kit Elevate compatible with Magnetic Mallet handpieces?
Yes. The five inserts fit new-generation Magnetic Mallet handpieces and use the impulse generated by MAGNETODYNAMICS technology. Power is adjustable across four levels; about 90% of procedures are performed at levels 1–2.
Ready to change
your approach to sinus lift?
Contact us to receive detailed information about Kit Elevate, request a demo, speak with a specialist — or order directly through OSSEOTOUCH LLC.
Book a call
A product specialist will walk you through the kit, answer your clinical questions, and guide your purchase.
Email us
cs@osseotouch.com
Message us directly on WhatsApp.
U.S. ordersBuy online
Order Kit Elevate through OSSEOTOUCH LLC — fast nationwide delivery and clinical support.
Kit Elevate is a Class IIa medical device manufactured by Meta Ergonomica S.r.l. (Italy). FDA 510(k) cleared for the U.S. market. CE MDR 2017/745, ISO 13485. Use restricted to qualified dental professionals according to the instructions for use.
